Control System Software Machine Features

EGP Sales Corporation > Control System Software Machine Features
ControlSystem
Services

EGP Sales Corporation

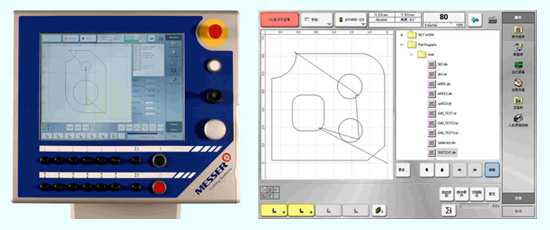

GLOBAL CONTROL P

The newest Control System invented by Messer is the "Global Control". It enables you to enter a new dimension in plate processing and by using unique features, it can help you reduce the downtime and increase your output.

Running on the Microsoft.net architecture makes it possible to connect the machine to your company-wide intranet. Remote access of machine information and easy data capture are new features of Global Control.


Virtual Service is a new and unique feature. It allows our team of experts to remotely diagnose many problems that, in the past, would have required a technician on-site. Through the use of your internet connection, it is possible to build a safe, Virtual Private Network (VPN) connection between your Global Control System and our diagnosis server. After establishing the connection, we are able to view the same data being displayed to the operator back at our facility. Now through the vast amount of diagnostic information in the Global Control, including an on-board oscilloscope, we can perform remote troubleshooting and updates to your software as necessary. Through this feature we can often solve occasional problems within a few hours. Instead of having expensive downtimes, you can now restart your production nearly without delay.

General Information Global Control:

The Human Machine Interface (HMI) based on the newest technology from Microsoft: Microsoft.Net. This enables:

  • Remote access of machine information
  • Data capture
  • HMI adapts the screen automatically to the process status
  • Automatic guidance by the HMI when preparing the process
  • Hand wheel support when editing parameters
  • Virtual Keyboard or optimized keyboard depending on the input data
  • Graphical editing of NC-Programs possible
  • Integration of standard software components from Messer possible - Nesting, Macros etc.

Advantages for our customers:

  • Modern reliable technology
  • High precision
  • Insensitive to interferences
  • Modern operating system enables easy integration into a network
  • Modular structure enables easy retrofitting
  • Messer own Development enables optimized Processes and customized adaptations
  • Modern design increases the acceptance of the operator
  • Fast operation with fewer errors due to input support and additional help in the HMI
  • Dynamical Override optimizes the result of cutting
  • Upward compatibility makes the machine open to future software versions

Technical features:

  • 15" TFT Touch screen
  • Windows XP
  • HMI based on Microsoft .Net Technology
  • Pentium IV 2,4 GHz
  • 512 MB RAM
  • 40 GB Hard drive
  • 100000 I/Os
  • 32 interpolated Axis
  • 255 PLC controlled Axis
  • Size of a NC-program: limited to the available hard drive capacity
  • Number of NC-programs: corresponding to the limitation of the operating system
  • Light bus for signal transmission
  • Floppy disc
  • Joystick with 8 positions
  • Dynamical Hand Wheel / Speed Override
  • ESSI/DIN/EIA Format
ControlSystem1
Services

EGP Sales Corporation

GLOBAL CONTROL S

Operator interface: Intuitve operator interface-e.g. here the process-database with graphic consumable display-saves tedious searching in and for cutting tables

Services

EGP Sales Corporation

Technical Data:

  • Industrial-pc
  • Operating system Windows XP embedded
  • Microsoft.Net technology
  • 15"TFT colour touch-screen
  • Processor Celeron M 1.5CHZ,passive cooling
  • Hard drive 40GB
  • USB 2 port
  • 2 Ethernet ports 100 M baud
  • Parallel data input Yes
  • Input formats DIN/ESSI/EIA
  • Graphical editor Yes
  • Bus system EtherCAT
  • Integrated USV Function
ControlSystem2
OMNIFLOW
Services

EGP Sales Corporation

OMNIFLOW

The Omniflow Automatic Gas Control System provides automatic setting and regulation of preheat oxygen, cutting oxygen and fuel gas pressure during oxyfuel cutting.

Precise, automatic control of the piercing process is possible for up to five-inch thick mild steel. The Omniflow system is designed for use with MG TurboFlame and ALFA oxyfuel torches. The Omniflow system is integrated into the Global Control Plus, eliminating the need for an extra control. The EdgeMate and EdgeMaster machines powered by the Global Control S require the Omniflow control box.

Features and Benefits:

  • Enhances operator productivity and eliminates set-up guesswork. Even novice operators can achieve good oxyfuel cutting.
  • Optimizes preheat and pierce routines to reduce cycle time and improve cut quality and consistency.
  • Increases tip life as the slag stream is directed away from the tip.
  • Pressure sensors on input and output lines provide more effective gas control.
  • Provides operator with capability to edit cutting parameters for fine-tuning of process.
  • Built-in diagnostics monitor the cutting process and assist with troubleshooting.

* Note: Each Omniflow Controller delivers enough gas flow to cut up to 4 torch-100 mm. Therefore, two Omniflow controllers provide enough flow for nearly all oxyfuel applications by providing up to 8 torch-100mm of cut.
