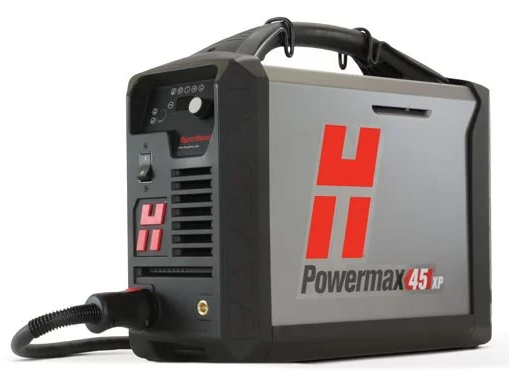

Hypertherm Powermax45 XP – your ultimate cutting solution for precision metalwork. Compact yet robust, this plasma cutting system is engineered to tackle a wide range of cutting tasks with ease and accuracy. With its advanced technology, the Powermax45 XP delivers fast, clean cuts on various metals, from thin sheets to thick plates. Whether you’re in automotive repair, HVAC, or metal fabrication, this versatile system ensures high-quality results every time.
Meet the newest member of our best-selling line of Powermax® portable plasma systems. The Hypertherm Powermax45 XP Plasma System delivers increased cut capacity – up to 16 mm (5/8”) metal – as well as faster cut speeds, and automatic gas adjustment for quick, simple setup and operation. New Duramax® Lock torches support handheld and mechanized cutting of a wider range of metal thicknesses, along with precision gouging such as spot weld removal, and marking capabilities.
| Capacity | Thickness | Cut speed |
|---|---|---|
| Cutting | ||
| Recommended | 16 mm (5/8″) 22 mm (7/8″) | 500 mm/min (20 ipm) 250 mm/min (10 ipm) |
| Severance (hand cutting) | 29 mm (1-1/8″) | 125 mm/min (5 ipm) |
| Pierce* | 12 mm (1/2″) | |
| Capacity | Metal removal rate | Groove profile |
|---|---|---|
| Gouging | ||
| Typical gouge | 3,4 kg (7.5 lbs.) per hour | 3,2 mm (.12″) D x 6,8 mm (.26″) W |
